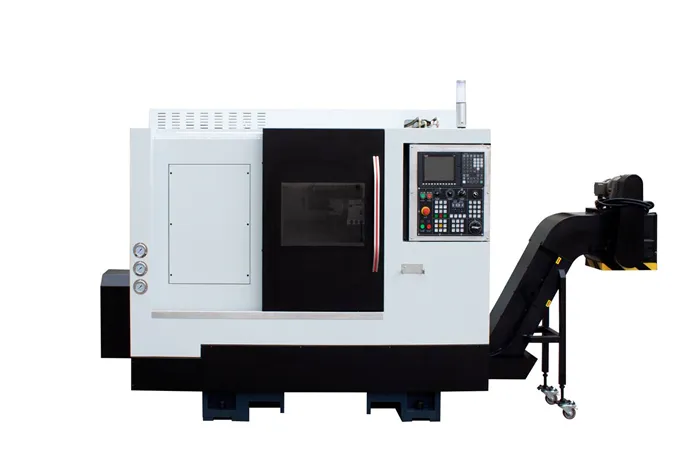

The MOL-Series (CNC Lathe) is designed with a slant bed machine structure, when undergoing the machining process it can show the stability of the machine due to this structure of the design. This design also enables the operator to be closer to the workpiece and with long hours of operation it decreases the tiredness and increases productivity. This Lathe combines high horsepower, high rigidity, and rapid machining
specialty to provide the user with high productivity machining ability.

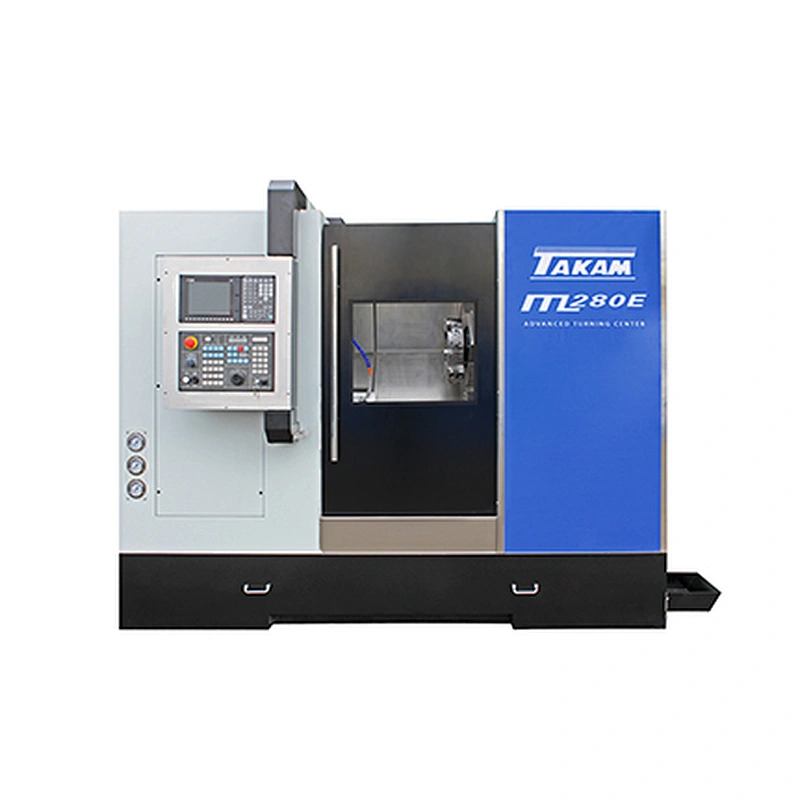

TAKAM CNC LATHE ML-SERIES

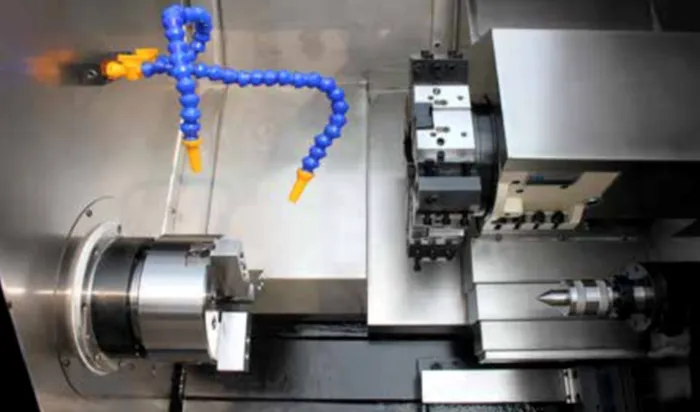

The turret with a gang-type tooling device can eliminate the tool exchange time and improve the working efficiency.
The 45- degree inclined working bed is designed with rigid mechanical construction and easy chip removal. This design resolved the difficulty of chip removal because of the combination of gang type and traditional turret.
This machine uses a linear guideway which can reduce friction, resistance, and effects of temperature change during axial quick movement. Also, it can result in high precision of machined products and a high capacity of machining output.
| model subject | ML-280E |
| X / Z轴行程（mm）| X / Z Trave | 210/600 |
| 床台旋径 ( mm）|Swing Over Bed | φ470 |
| 往复台上旋径 ( mm ) | Swing Over Size | φ280 |
| 最大加工直径（盘类）( mm ) | Max Turning Diameter(disc) | φ400 |
| 最大加工直径（轴类）( mm ) | Max Turning Diameter(axis) | φ210 |
| 最大加工长度（mm）|Max Turning Length | 600 |
| 两心间距（mm）| Distance Between Centers | 700 |
| 油压夹头尺寸（in）| Power Chuck Size | 8” |
| 最大棒材通孔直径（mm）| Max. Diameter Of Bar Bore | φ52 |
| 主轴贯通孔直径（mm）| Diameter Of Spindle Bore | φ62 |
| 主轴头形式（ASA）| Spindle Head Type | A2-6 |
| 主轴转速（rpm）| Spindle RPM | 4000 |
| 主轴马力（kw）| Spindle Motor | 11 |
| 主轴精度（mm）| Spindle Accuracy | 0.003 |
| X / Z轴快速位移（m/min）| X / Z axis Rapid Traverse | 20 |
| X、Z轴电机功率（kw）| X / Z axis Servo Motor | 1.8/1.8 |
| 刀具数（units）| Number of tools | 8 |
| 定位精度±（mm）| Position Accuracy | 0.005 |
| 重复定位精度±（mm）| Repeatability | 0.003 |
| 车刀尺寸（mm）| Turning Tool Size | 25X25 |
| 镗刀尺寸（mm）| Boring Tool Size | φ40 |
| 尾座行程（mm）| Tailstock Travel | 600 |
| 顶心行程（mm）| Quill Trave | 120 |
| 顶心直径（mm）| Quill Diameter | φ75 |
| 顶心锥度（MT）| Quill Taper | MT4 |
| 顶心驱动方式 | Quill Activation | 油压（Hydr. ) |
| 机床重量（KG）| Machine Weight（Little） | 3700 |
| 机床尺寸（mm）| Machine Size | 3700X1600X1870 |
