Xiamen Takam Machinery Co., Ltd361100About UsTongji North Street No260, Tong'an District, Xiamen, China 361100TAKAM group(TAKAM)is Taiwanese-Owned enterprise with three global production bases, located in California, USA & Taichung, Taiwan & Xiamen, China. Xiamen Takam Machinery Co. Ltd was founded in 1989, located in Xiamen City, China's special economic zone covers an area of 35,000 square meters, engaged in CNC high-tech series product development, research, manufacturing, and sales. Throughout many years of experience, TAKAM has become an international high-end CNC machines’ brand, and widely used in aerospace, automotive, electronics, precision mold making and mechanical parts processing, and many other types of industries in t

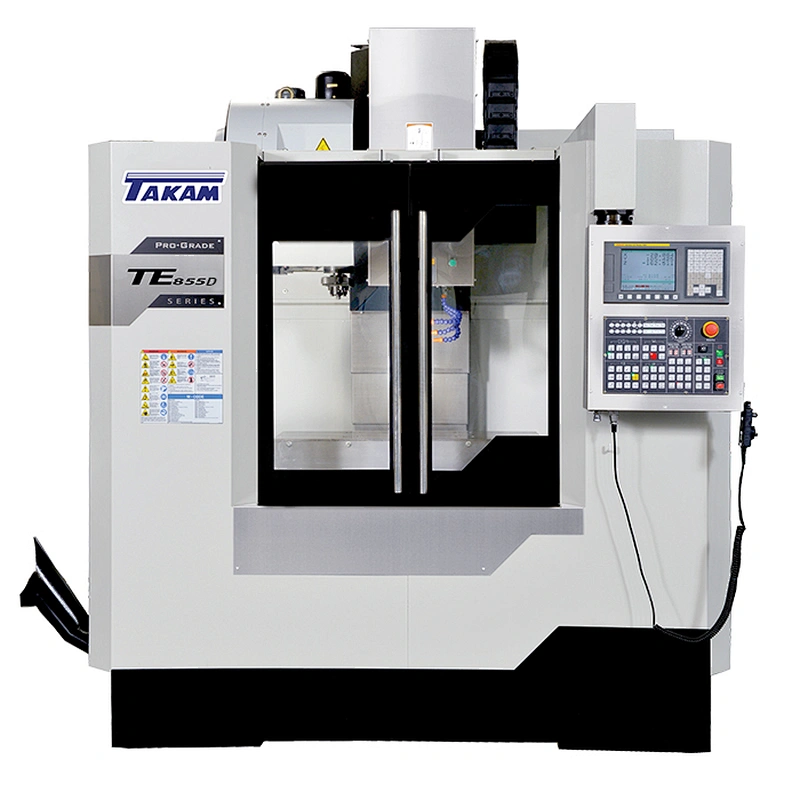

TE-855D Box Way Cnc Vertical Machine Center
TE-855D Box Way Cnc Vertical Machine Center

TE-855D Box Way Cnc Vertical Machine Center

Model NO.
TE-855D
Quantity:

THE BRAND NEW TE-SERIES

Designed with efficiency and productivity in mind!

HIGH SPEED

LARGE WORK AREA

HIGH POWER

36m/min opt 48m/min

850 to 1300mm

15kw

Rapid Travel

Wortable Size

Spindle power

Extra Wide Column & Base

The TE-SERIES vertical machine center is designed with extra wide base and extrawide column, gives the machine structure stronger rigidity and when the machine is going under heavy duty machining it will give the machine longer life and more precision parts

High Precision Spindle

TE-Series vertical machine center uses the best spindle brands, for the TE-855 machine Takam use diameter 120mm spindle with standard ring splash funtion.

High Grade C3 Ball Screws and Linear Guideway

At Takam Machinery we only use world wide recongition brands such as HIWIN, PMI or THK to ensure the precision and durability of our machines, we believe in cooperation with the professionals

High Precision Bearing

All Takam machines uses high precision NSK bearings, we do not mix any local chinese brands into our production of the machine. With optional we can install SKF bearings also.

Various Options of Controller

Takam Machinery trys to satisfy all market customers, so we offer a wide range of brands of

controller such as Mitsubishi, Fanuc, Siemens, Fagor and heidenhain.

Mitsubishi M80A/M80B

Fanuc 0I-MF

Siemens 808D/828D

model
subject
TE-855D
Work table size (mm)1,000*550
Machining area (mm)850*550
X/Y/Z Axis travel (mm)850*550*550
Spindle motor (kw/hp)7.5
Axis motorMitsubishi(kw)1.5/1.5/3.0
Axis motorFanuc(kw)1.8/1.8/3.0
Cutting feed rateX/Y/Z Axis(mm/min)1-10,000
Rapid feed rateX/Y/Z Axis(m/min)48/48/24
(X/Y/Z Axis) Linear guideway35/35/35(Box way)
Position accuracy (mm)±0.005
Repeatability (mm)±0.003
