TW-1016 Competitive High Qulity Horizontal Machine Center
TW-1016 Competitive High Qulity Horizontal Machine Center

TW-1016 Competitive High Qulity Horizontal Machine Center

Model NO.
TW-1016
Quantity:

The TAKAM TW-Series horizontal machine center obtained the design and manufacturing technology from Germany. The main machine components such as the spindle, pallet changer, linear guideways, ball screws, bearing, linear scale, hydraulic system, lubrication system, controller, and tool changer are all international well-known brand. The TW-Series horizontal machine center contains high precision, high speed, high productivity and high-reliability specialties, the TW-Series horizontal machine center is one of the most modern production machine widely used in automotive, measurement tools, hydraulic system, mold production, and aerospace industry.

TW-Series machining center

High efficiency, high precision, and high structural

TW-Series with wide T Shape structure

>> The T-Shape structure highly increase the rigidity of the machine structure

>> The casting uses high-grade meehanite casting iron for high-quality structure

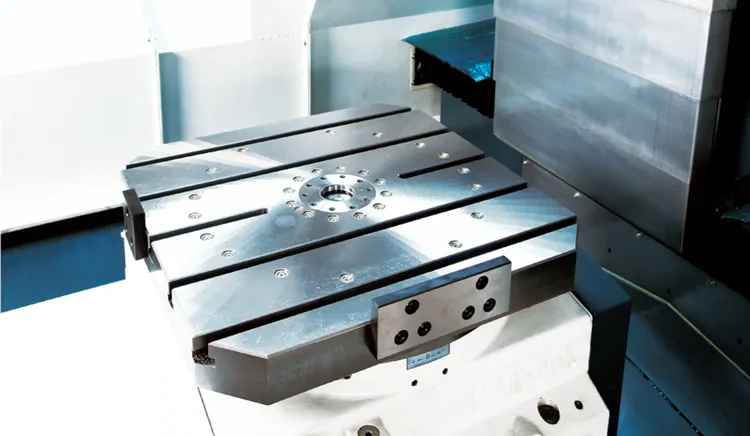

TW-Series Horizontal Work Table

>> 1-degree work table, has the ability of high precision suitable for heavy load and heavy duty machining

BT50 Spindle 6000RPM

>> TW-Series horizontal machining center is standard BT50 belt type spindle, contains the function of oil cooling and decreases the deformation of the headstock and increase precision

TW-Series Horizontal Machine Center Body

>> The T-Shape wide stance structure contains high rigidity

>> scientific structure design gives the machine strong machining ability, with extra heavy load on the worktable

model
subject
TW-1016
Work table size (mm)1,000*1,000
Machining area (mm)1,000*1,000
Number of pallet (piece)1
T Slot (mm)150*22*6
Max Work Table Rotation Speed (rpm)11.1
Work Table Index 1°×360
Work Table Motor (kw)3
Work Table Clamping Force (kg/cm2)4,000
Cutting Accurancy (sec)5
Max weight on work table (kg)3,000
X/Y/Z Axis travel (mm)1,600*1,200*1,350
Spindle nose to work table surface (mm)230-1,580
Spindle Center to Worktable (mm)150-1,350
Spindle taper BT50
Spindle RPM (rpm)6,000
Spindle delivery type Belt
Spindle motor (kw/hp)22
Axis motor(kw)7.0*4.0*7.0
Cutting feed rateX/Y/Z Axis(mm/min)1-6,000
Rapid feed rateX/Y/Z Axis(m/min)24/24/24
Position accuracy (mm)±0.012
Repeatability (mm)±0.008
Air requirement (kg/cm2)6
Cooling pump (hp)3/4
Voltage requirement (kva)35
Machine Weight (kw)22,000
Exterior sizeL×W×H(mm)4,400*4,260*3,000
