The TAKAM TW-Series horizontal machine center obtained the design and manufacturing technology from Germany. The main machine components such as the spindle, pallet changer, linear guideways, ball screws, bearing, linear scale, hydraulic system, lubrication system, controller, and tool changer are all international well-known brand. The TW-Series horizontal machine center contains high precision, high speed, high productivity and high-reliability specialties, the TW-Series horizontal machine center is one of the most modern production machine widely used in automotive, measurement tools, hydraulic system, mold production, and aerospace industry.

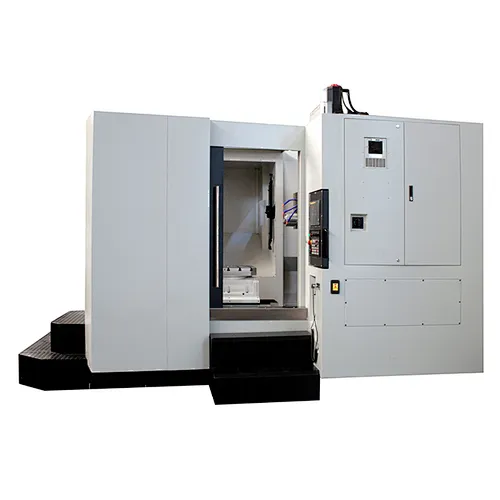

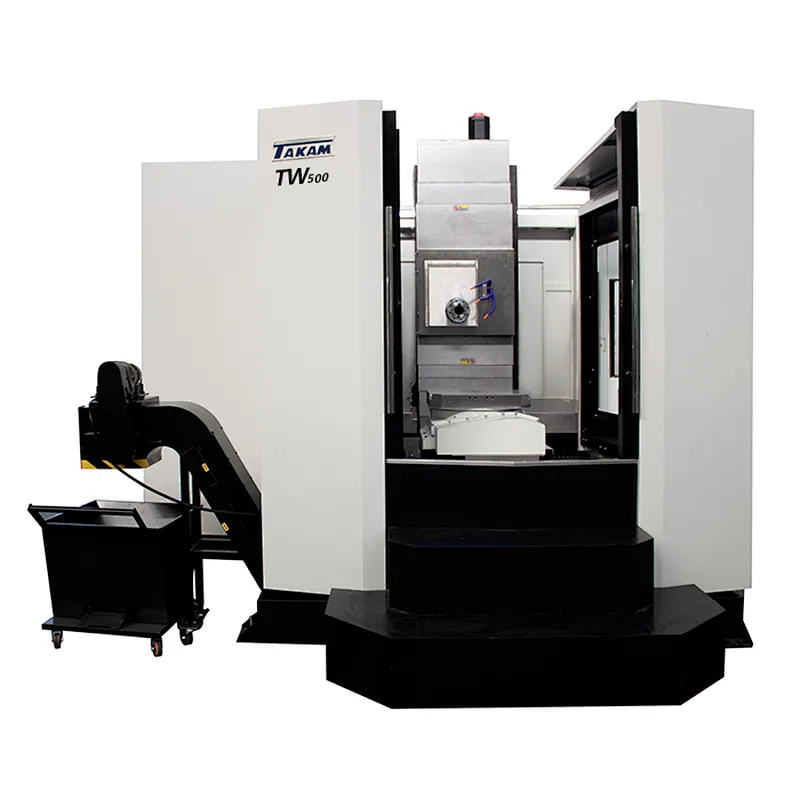

TW-Series machining center
High efficiency, high precision, and high structural
TW-Series with wide T Shape structure
>> The T-Shape structure highly increase the rigidity of the machine structure
>> The casting uses high-grade meehanite casting iron for high-quality structure
TW-Series Horizontal Work Table
>> 1-degree work table, has the ability of high precision suitable for heavy load and heavy duty machining
BT50 Spindle 6000RPM
>> TW-Series horizontal machining center is standard BT50 belt type spindle, contains the function of oil cooling and decreases the deformation of the headstock and increase precision
TW-Series Horizontal Machine Center Body
>> The T-Shape wide stance structure contains high rigidity
>> scientific structure design gives the machine strong machining ability, with extra heavy load on the worktable
| model subject | TW-500 |
| Work table size (mm) | 500*500 |
| Machining area (mm) | 500*500 |
| Number of pallet (piece) | 1 |
| T Slot (mm) | 100*4*18 |
| Max Work Table Rotation Speed (rpm) | 11.1 |
| Work Table Index | 1°×360 |
| Work Table Motor (kw) | 3 |
| Work Table Clamping Force (kg/cm2) | 4,000 |
| Cutting Accurancy (sec) | 5 |
| Max weight on work table (kg) | 800 |
| X/Y/Z Axis travel (mm) | 700*600*600 |
| Spindle nose to work table surface (mm) | 120-720 |
| Spindle Center to Worktable (mm) | 100-700 |
| Spindle taper | BT50 |
| Spindle RPM (rpm) | 6,000 |
| Spindle delivery type | Belt |
| Spindle motor (kw/hp) | 15 |
| Axis motor(kw) | 3.0/3.0/3.0 |
| Cutting feed rate（X/Y/Z Axis）(mm/min) | 1-6,000 |
| Rapid feed rate（X/Y/Z Axis）(m/min) | 24/24/24 |
| Position accuracy (mm) | ±0.008 |
| Repeatability (mm) | ±0.005 |
| Air requirement (kg/cm2) | 6 |
| Cooling pump (hp) | 3/4 |
| Voltage requirement (kva) | 35 |
| Machine Weight (kw) | 13,000 |
| Exterior size（L×W×H）(mm) | 4,400*4,260*3,000 |
